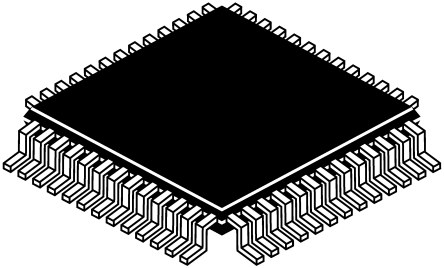

Analog Devices AD5391BSTZ-5, 16-Channel 12 bit Serial DAC, 167ksps, 52-Pin LQFP [AD5391BSTZ-5]; 158-0159
0₫
Mã kho: 1580159
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 16 |
| Digital Interface Type | Serial (I2C/SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | LQFP |
| Power Supply Type | Single |
| Conversion Rate | 167ksps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External, Internal |
| Architecture | Resistor String |
| Pin Count | 52 |
| Maximum Settling Time | 8µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±0.06%FSR |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 1.4mm |
| Integral Nonlinearity Error | ±1LSB |
| Dimensions | 10 x 10 x 1.4mm |
| Length | 10mm |
| Width | 10mm |
