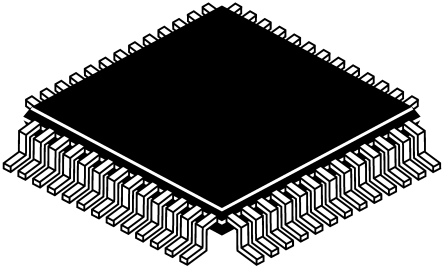

Analog Devices AD5390BSTZ-5, 16-Channel 14 bit Serial DAC, 125ksps, 52-Pin LQFP [AD5390BSTZ-5]; 538-4886
0₫
Mã kho: 5384886
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 14 bit |
Number of DAC Channels | 16 |
Digital Interface Type | Serial (I2C/SPI/QSPI/Microwire) |
Mounting Type | Surface Mount |
Package Type | LQFP |
Power Supply Type | Single |
Conversion Rate | 125ksps |
Typical Single Supply Voltage | 5 V |
Voltage Reference | External, Internal |
Architecture | Resistor String |
Pin Count | 52 |
Maximum Settling Time | 10µs |
Output Polarity | Unipolar |
Full Scale Error | ±0.06%FSR |
Minimum Operating Temperature | -40 °C |
Width | 10mm |
Height | 1.4mm |
Maximum Operating Temperature | +85 °C |
Length | 10mm |
Dimensions | 10 x 10 x 1.4mm |
Integral Nonlinearity Error | ±3LSB |
