![Analog Devices AD5372BSTZ 1581876](http://nguyenxuong.com/cdn/shop/products/L0402223-01_01103327-e44e-4d0a-9fc5-ee8be108e8b3_444x271.gif?v=1594008691)

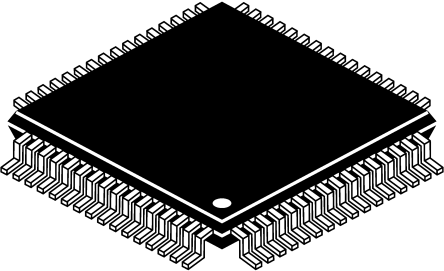

Analog Devices AD5372BSTZ, 32-Channel 16 bit Serial DAC, 64-Pin LQFP [AD5372BSTZ]; 158-1876
0₫
Mã kho: 1581876
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 16 bit |
Number of DAC Channels | 32 |
Digital Interface Type | Serial (SPI/QSPI/Microwire) |
Mounting Type | Surface Mount |
Package Type | LQFP |
Power Supply Type | Dual |
Voltage Reference | External |
Architecture | Resistor String |
Pin Count | 64 |
Maximum Settling Time | 30µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±10mV |
Dimensions | 10 x 10 x 1.4mm |
Minimum Operating Temperature | -40 °C |
Integral Nonlinearity Error | ±4LSB |
Width | 10mm |
Typical Dual Supply Voltage | ±12 V, ±15 V, ±9 V |
Maximum Operating Temperature | +85 °C |
Height | 1.4mm |
Length | 10mm |
