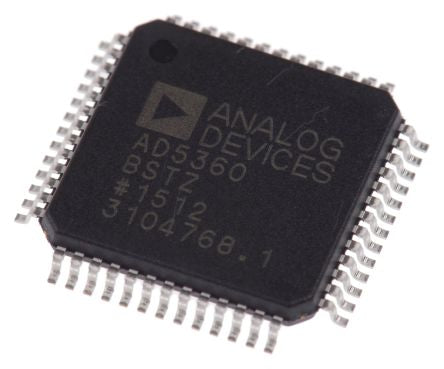

Analog Devices AD5360BSTZ, 16-Channel 16 bit Serial DAC, 540ksps, 52-Pin LQFP [AD5360BSTZ]; 759-2231
0₫
Mã kho: 7592231
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 16 |
| Digital Interface Type | Serial |
| Mounting Type | Surface Mount |
| Package Type | LQFP |
| Power Supply Type | Dual, Single |
| Conversion Rate | 540ksps |
| Typical Single Supply Voltage | 2.5 → 5.5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 52 |
| Maximum Settling Time | 20µs |
| Full Scale Error | ±20mV |
| Width | 10.2mm |
| Integral Nonlinearity Error | ±4LSB |
| Typical Dual Supply Voltage | ±16.5V |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 10.2 x 10.2 x 1.6mm |
| Height | 1.6mm |
| Maximum Operating Temperature | +85 °C |
| Length | 10.2mm |
