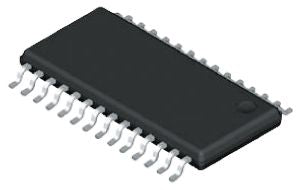

![Analog Devices AD5336BRUZ 1610622](http://nguyenxuong.com/cdn/shop/products/R0218282-01_929a9629-920b-4df7-afb5-99f7826c8964_300x190.jpg?v=1594091648)
DAC,AD5336B 10bit 7us quad TSSOP [AD5336BRUZ]; 161-0622
0₫
Mã kho: 1610622
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 10 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Conversion Rate | 143ksps |
Typical Single Supply Voltage | 3.3 V, 5 V |
Voltage Reference | External |
Architecture | Resistor String |
Pin Count | 28 |
Maximum Settling Time | 9µs |
Output Polarity | Unipolar |
Full Scale Error | ±1%FSR |
Maximum Operating Temperature | +105 °C |
Integral Nonlinearity Error | ±4LSB |
Dimensions | 9.7 x 4.4 x 1.05mm |
Minimum Operating Temperature | -40 °C |
Width | 4.4mm |
Height | 1.05mm |
Length | 9.7mm |
