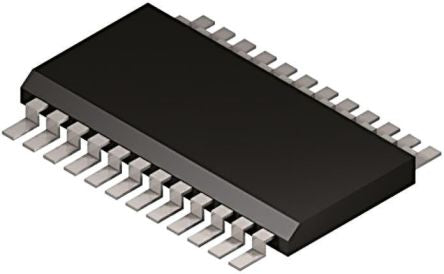

Analog Devices AD5334BRUZ, 4-Channel 8 bit Parallel DAC, 167ksps, 24-Pin TSSOP [AD5334BRUZ]; 497-3609
0₫
Mã kho: 4973609
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Conversion Rate | 167ksps |
Typical Single Supply Voltage | 3.3 V, 5 V |
Voltage Reference | External |
Architecture | Resistor String |
Pin Count | 24 |
Maximum Settling Time | 8µs |
Output Polarity | Unipolar |
Full Scale Error | ±1%FSR |
Integral Nonlinearity Error | ±1LSB |
Minimum Operating Temperature | -40 °C |
Height | 1.05mm |
Dimensions | 7.8 x 4.4 x 1.05mm |
Maximum Operating Temperature | +105 °C |
Length | 7.8mm |
Width | 4.4mm |
