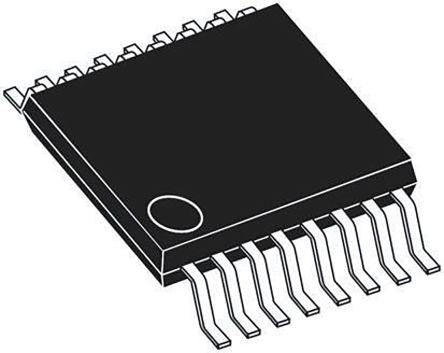

Analog Devices AD5323ARUZ, 2-Channel 12 bit Serial DAC, 125ksps, 16-Pin TSSOP [AD5323ARUZ]; 709-5847
0₫
Mã kho: 7095847
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Conversion Rate | 125ksps |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 10µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±1%FSR |
| Width | 4.4mm |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±16LSB |
| Maximum Operating Temperature | +105 °C |
| Height | 1.05mm |
| Dimensions | 5 x 4.4 x 1.05mm |
| Length | 5mm |
