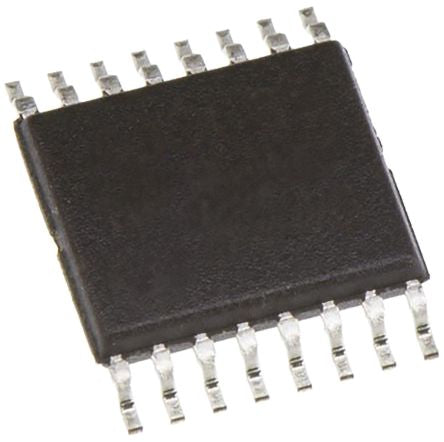

Analog Devices AD5066BRUZ, 4-Channel 16 bit Serial DAC, 16-Pin TSSOP [AD5066BRUZ]; 160-9908
0₫
Mã kho: 1609908
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Architecture | R-2R |
| Pin Count | 16 |
| Maximum Settling Time | 15µs |
| Output Polarity | Bipolar |
| Full Scale Error | ±0.05%FSR |
| Width | 4.5mm |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±2LSB |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Height | 1.05mm |
| Maximum Operating Temperature | +125 °C |
| Length | 5.1mm |
