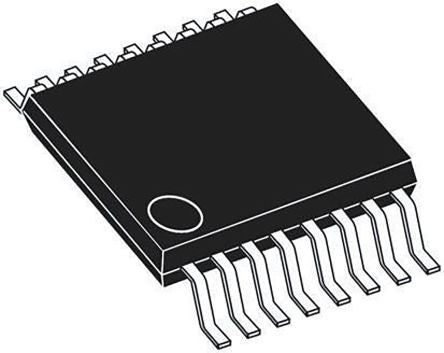

Analog Devices AD5064BRUZ, 4-Channel 16 bit Serial DAC, 125ksps, 16-Pin TSSOP [AD5064BRUZ]; 709-5658
0₫
Mã kho: 7095658
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Conversion Rate | 125ksps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 13µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±0.07%FSR |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±1LSB |
| Width | 4.4mm |
| Height | 1.05mm |
| Maximum Operating Temperature | +105 °C |
| Dimensions | 5 x 4.4 x 1.05mm |
| Length | 5mm |
