![Analog Devices AD5061BRJZ-2500RL7 1788956](http://nguyenxuong.com/cdn/shop/products/F8099342-01_e2cf912a-ecc0-4887-affa-10c3caa2a309_444x378.jpg?v=1594418182)

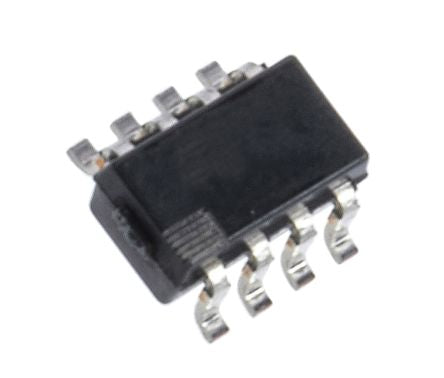

Analog Devices AD5061BRJZ-2500RL7, 16 bit Serial DAC, 8-Pin SOT-23 [AD5061BRJZ-2500RL7]; 178-8956
0₫
Mã kho: 1788956
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 16 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Serial (SPI/QSPI/Microwire) |
Mounting Type | Surface Mount |
Package Type | SOT-23 |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Voltage Reference | External, Internal |
Architecture | R-2R |
Pin Count | 8 |
Maximum Settling Time | 4µs |
Output Polarity | Bipolar |
Full Scale Error | ±3mV |
Maximum Operating Temperature | +85 °C |
Length | 3mm |
Height | 1.3mm |
Dimensions | 3 x 1.7 x 1.3mm |
Minimum Operating Temperature | -40 °C |
Integral Nonlinearity Error | ±4LSB |
Width | 1.7mm |
