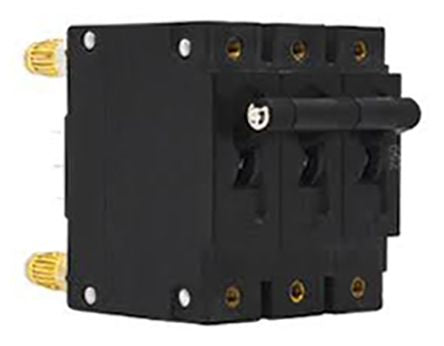

Carling Technologies 200A 2 Pole Thermal Magnetic Circuit Breaker, 150 V dc, 240 V ac C [CA2-P0-D4-820-321-MT]; 881-0987
0₫
Mã kho: 8810987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 200A |
| Number of Poles | 2 |
| Series | C |
| Mounting Style | Panel Mount |
| Mounting Hole Width | 52.4mm |
| Overall Length | 38.5mm |
| Breaking Capacity at Maximum Voltage Rating | 5000 A @ 125/250 V dc, 10000 A @ 277 V ac |
| Mounting Hole Size | 38.61 x 52.37mm |
| Overall Depth | 64.5mm |
| Application | General Purpose |
| Tripping Mechanism | Hydraulic-Magnetic |
| Overall Dimensions | 38.48 x 63.5 x 64.53mm |
| Mounting Hole Length | 38.6mm |
| Special Features | The UL489 C-Series Employs A Unique Arc Chute Design Which Allows For Higher Interrupting Capacities Of Up to 10,000 Amps. New Thermoset Glass Filled Polyester Half Shell Construction Provides For Increased Mechanical and Electrical Strength |
| Break Time | Medium |
| Reset Actuator Type | Handle |
| Circuit Breaker Type | MCCB |
| Rated DC Voltage | 150V |
| Rated AC Voltage | 240V |
| Terminal Contact Type | Stud |
