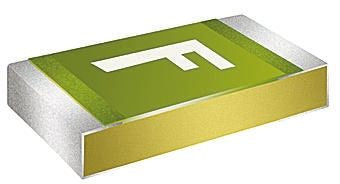

Schurter 1.5A FF Surface Mount Fuse, 32 V ac, 63 V dc [3413.0117.22.]; 665-7352
by Schurter
0₫
Mã kho: 6657352
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 1.5 A |
| Length | 3.2mm |
| Width | 1.6mm |
| Height | 0.6mm |
| Dimensions | 3.2 x 1.6 x 0.6mm |
| Fuse Speed | FF |
| Body Material | Epoxy Glass |
| Breaking Capacity at Maximum Voltage Rating | 50 A @ 32 V ac, 50 A @ 63 V dc |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +90°C |
| Terminal Material | Tin Plated Copper |
| Operating Temperature Range | -55 → +90 °C |
