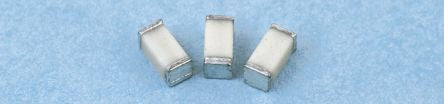

Schurter 3A FF Surface Mount Fuse, 125V ac/dc [3410.0037.01]; 600-7366
by Schurter
0₫
Mã kho: 6007366
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 3 A |
| Voltage Rating | 125 V ac/dc |
| Length | 3.2mm |
| Width | 1.55mm |
| Height | 1.55mm |
| Dimensions | 3.2 x 1.55 x 1.55mm |
| Fuse Speed | FF |
| Body Material | Ceramic |
| Breaking Capacity at Maximum Voltage Rating | 50 A @ 125 V ac, 300 A @ 125 V dc |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +150°C |
| Terminal Material | Tin Plated Nickel |
| Operating Temperature Range | -55 → +150 °C |
