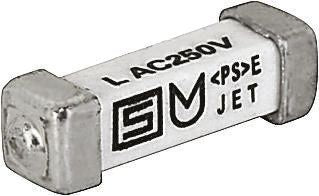

Schurter 200mA T Surface Mount Fuse, 125 V dc, 250 V ac [3403.0159.24]; 703-2694
by Schurter
0₫
Mã kho: 7032694
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 200 mA |
| Length | 10.1mm |
| Width | 3mm |
| Height | 3mm |
| Dimensions | 10.1 x 3 x 3mm |
| Fuse Speed | T |
| Body Material | Ceramic |
| Breaking Capacity at Maximum Voltage Rating | 100 A @ 125 V dc, 200 A @ 250 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Terminal Material | Tin Plated Copper Alloy |
| Operating Temperature Range | -55 → +125 °C |
