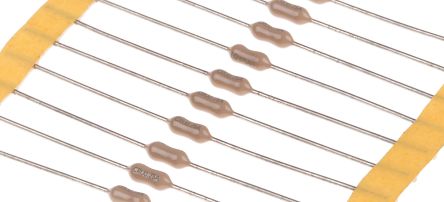

RS PRO 750mA Axial FF Non-Resettable Wire Ended Fuse, 125V ac/dc; 764-9466
by RS PRO
0₫
Mã kho: 7649466
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 750 mA |
| Lead Orientation | Axial |
| Voltage Rating | 125 V ac/dc |
| Fuse Speed | FF |
| Body Material | Epoxy Coated |
| Body Diameter | 2.65mm |
| Body Height | 7.1mm |
| Wire Length | 28mm |
| Breaking Capacity at Maximum Voltage Rating | 50 A @ 125 V ac, 300 A @ 125 V dc |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Wire Diameter | 0.65mm |
