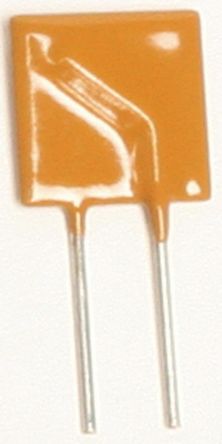

Nidec 3A Hold current, Radial Leaded PCB Mount Resettable Fuse, 16V [PRCP-RG300-0]; 637-6684
by Nidec
0₫
Mã kho: 6376684
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 5.1A |
| Time to Trip | 1s |
| Hold Current | 0.125 |
| Voltage Rating | 16 V |
| Maximum Current | 100 A |
| Minimum Resistance | 0.038Ω |
| Maximum Resistance | 98mΩ |
| Power Dissipation | 2.3W |
| Body Height | 11mm |
| Body Length | 7.1mm |
| Body Width | 3mm |
| Wire Pitch | 5.1mm |
| Wire Length | 7.6mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Wire Diameter | 0.81mm |
