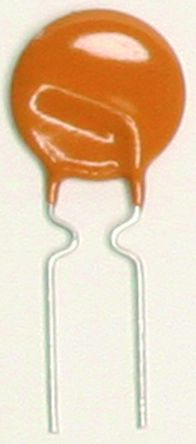

Nidec 1.6A Hold current, Radial Leaded PCB Mount Resettable Fuse, 30V [PRCP-R160-0-99]; 637-6432
by Nidec
0₫
Mã kho: 6376432
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Lead Orientation | Radial |
Trip Current | 3.2A |
Time to Trip | 8s |
Hold Current | 1.6 A |
Voltage Rating | 30 V |
Maximum Current | 40 A |
Minimum Resistance | 0.055Ω |
Maximum Resistance | 150mΩ |
Power Dissipation | 0.9W |
Body Height | 16.8mm |
Body Length | 10.2mm |
Body Width | 3mm |
Wire Pitch | 5.1mm |
Wire Length | 7.6mm |
Maximum Operating Temperature | +85°C |
Wire Diameter | 0.51mm |
Minimum Operating Temperature | -40°C |
