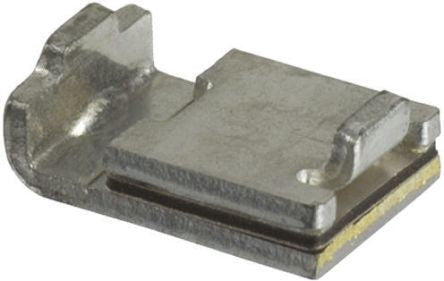

Littelfuse 1.1A Surface Mount Resettable Fuse, 30V [SMD100F-2]; 517-7054
by Littelfuse
0₫
Mã kho: 5177054
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 2.2A |
| Voltage Rating | 30 V |
| Time to Trip | 0.5s |
| Hold Current | 1.1 A |
| Maximum Current | 40 A |
| Length | 7.98mm |
| Height | 3mm |
| Width | 5.44mm |
| Minimum Resistance | 0.12Ω |
| Maximum Resistance | 480mΩ |
| Power Dissipation | 1.7W |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | Maximum of +85 °C |
| Dimensions | 7.98 x 5.44 x 3mm |
