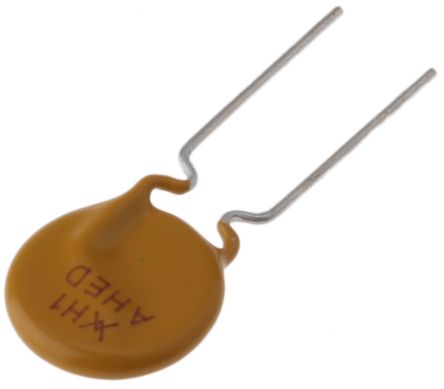

Littelfuse 1A Hold current, Radial Leaded PCB Mount Resettable Fuse, 30V dc [RHEF100]; 657-1772
by Littelfuse
0₫
Mã kho: 6571772
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 1.8A |
| Time to Trip | 5.2s |
| Hold Current | 0.0416666666666667 |
| Voltage Rating | 30 V dc |
| Maximum Current | 40 A |
| Minimum Resistance | 0.18Ω |
| Maximum Resistance | 430mΩ |
| Power Dissipation | 1.4W |
| Body Height | 13.6mm |
| Body Length | 9.7mm |
| Body Width | 3mm |
| Wire Pitch | 4.3 → 5.8mm |
| Wire Length | 7.6mm |
| Wire Diameter | 24AWG |
