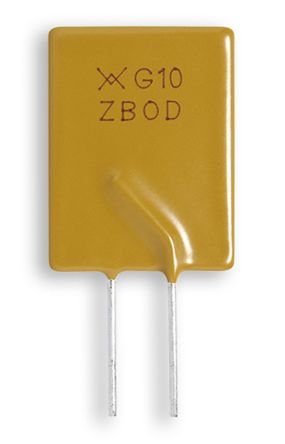

Littelfuse 10A Hold current, Radial Resettable Wire Ended Fuses, 16V dc [RF3259-000]; 174-0846
by Littelfuse
0₫
Mã kho: 1740846
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 17A |
| Time to Trip | 6s |
| Hold Current | 0.416666666666667 |
| Voltage Rating | 16 V dc |
| Maximum Current | 100 A dc |
| Minimum Resistance | 0.004Ω |
| Maximum Resistance | 10mΩ |
| Power Dissipation | 3.6W |
| Body Height | 25.2mm |
| Body Length | 16.5mm |
| Body Width | 3mm |
| Wire Pitch | 5.8mm |
| Wire Length | 7.6mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
