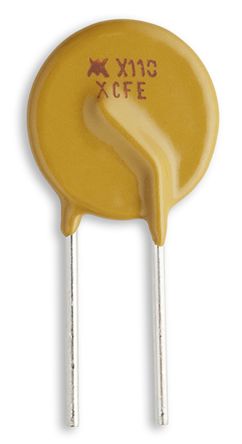

Littelfuse 1.1A Hold current, Radial Resettable Wire Ended Fuses, 72 V ac, 72 V dc [RF2623-000]; 174-0428
by Littelfuse
0₫
Mã kho: 1740428
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 2.2A |
| Time to Trip | 8.2s |
| Hold Current | 1.1 A |
| Voltage Rating | 72 V ac, 72 V dc |
| Maximum Current | 40 A |
| Minimum Resistance | 0.15Ω |
| Maximum Resistance | 380mΩ |
| Power Dissipation | 1.5W |
| Body Height | 17.5mm |
| Body Length | 12.8mm |
| Body Width | 3mm |
| Wire Pitch | 5.8mm |
| Wire Length | 7.6mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
