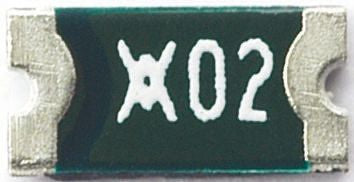

Littelfuse 0.12A Surface Mount Resettable Fuse, 48V dc [NANOSMDC012F]; 506-993
by Littelfuse
0₫
Mã kho: 506993
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 390mA |
| Voltage Rating | 48 V dc |
| Time to Trip | 0.2s |
| Hold Current | 0.12 A |
| Maximum Current | 0.416666666666667 |
| Length | 3.4mm |
| Height | 1mm |
| Width | 1.8mm |
| Minimum Resistance | 1.4Ω |
| Maximum Resistance | 6.5Ω |
| Power Dissipation | 0.5W |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | Maximum of +85 °C |
| Dimensions | 3.4 x 1.8 x 1mm |
