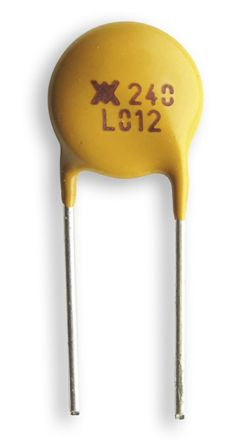

Littelfuse 0.12A Hold current, Radial Resettable Wire Ended Fuses, 240 V ac, 265 V ac [D63011-000]; 174-0451
by Littelfuse
0₫
Mã kho: 1740451
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 300mA |
| Time to Trip | 15s |
| Hold Current | 0.12 A |
| Voltage Rating | 240 V ac, 265 V ac |
| Maximum Current | 20 A |
| Minimum Resistance | 3Ω |
| Maximum Resistance | 12Ω |
| Power Dissipation | 1W |
| Body Height | 10.7mm |
| Body Length | 8.3mm |
| Body Width | 3.8mm |
| Wire Pitch | 5.8mm |
| Wire Length | 7.6mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
