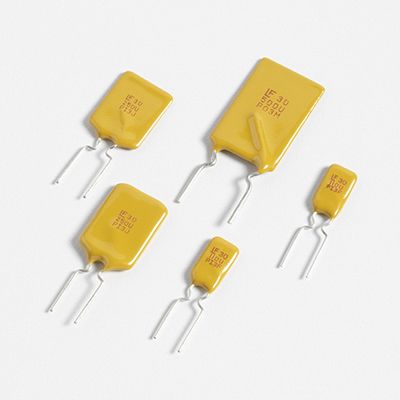

Littelfuse 4A Resettable Surface Mount Fuse, 30V dc [30R400UF]; 174-0379
by Littelfuse
0₫
Mã kho: 1740379
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 8A |
| Voltage Rating | 30 V dc |
| Time to Trip | 12.7s |
| Hold Current | 0.166666666666667 |
| Maximum Current | 40 A |
| Length | 14mm |
| Height | 22mm |
| Width | 3mm |
| Terminal Material | Tin Plated Copper |
| Minimum Resistance | 0.01Ω |
| Maximum Resistance | 50mΩ |
| Power Dissipation | 2.5W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Series | 30R |
| Fuse Speed | F |
| Operating Temperature Range | -40 → +85 °C |
| Body Material | Polymer |
| Dimensions | 14 x 3 x 22mm |
