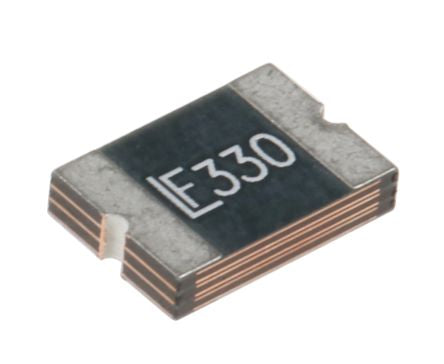

Littelfuse 3.3A Resettable Surface Mount Fuse, 24V dc [2920L330/24MR]; 174-0687
by Littelfuse
0₫
Mã kho: 1740687
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 5.5A |
| Voltage Rating | 24 V dc |
| Time to Trip | 5s |
| Hold Current | 3.3 A |
| Maximum Current | 40 A |
| Length | 7.98mm |
| Height | 2mm |
| Width | 5.44mm |
| Minimum Resistance | 0.01Ω |
| Maximum Resistance | 50mΩ |
| Power Dissipation | 2W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Series | 2920L |
| Fuse Speed | F |
| Operating Temperature Range | -40 → +85 °C |
| Dimensions | 7.98 x 5.44 x 2mm |
