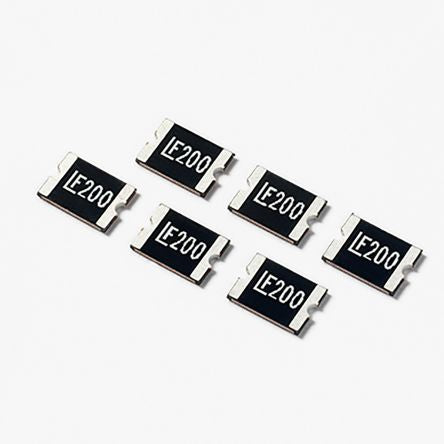

Littelfuse 1.1A Resettable Surface Mount Fuse, 16V dc [1812L110/16DR]; 174-0372
by Littelfuse
0₫
Mã kho: 1740372
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 1.95A |
| Voltage Rating | 16 V dc |
| Time to Trip | 0.3s |
| Hold Current | 1.1 A |
| Maximum Current | 100 A |
| Length | 4.73mm |
| Height | 1.07mm |
| Width | 3.41mm |
| Terminal Material | Solder Plated Copper |
| Minimum Resistance | 0.06Ω |
| Maximum Resistance | 180mΩ |
| Power Dissipation | 0.8W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Fuse Speed | F |
| Operating Temperature Range | -40 → +85 °C |
| Series | 1812L |
| Dimensions | 4.73 x 3.41 x 1.07mm |
