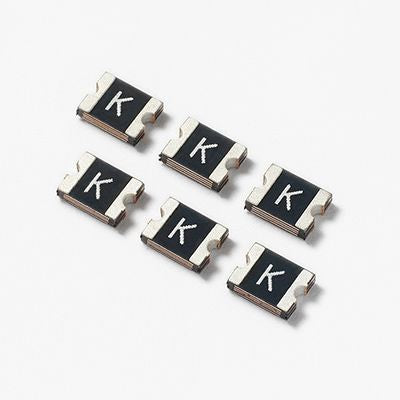

Littelfuse 1.5A Resettable Surface Mount Fuse, 16V dc [1210L150/16WR]; 174-0697
by Littelfuse
0₫
Mã kho: 1740697
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 3A |
| Voltage Rating | 16 V dc |
| Time to Trip | 0.3s |
| Hold Current | 1.5 A |
| Maximum Current | 100 A |
| Length | 3.43mm |
| Height | 1.25mm |
| Width | 2.8mm |
| Terminal Material | Solder Plated Copper |
| Minimum Resistance | 0.04Ω |
| Maximum Resistance | 110mΩ |
| Power Dissipation | 0.8W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Series | 1210L |
| Operating Temperature Range | -40 → +85 °C |
| Dimensions | 3.43 x 2.8 x 1.25mm |
| Fuse Speed | F |
