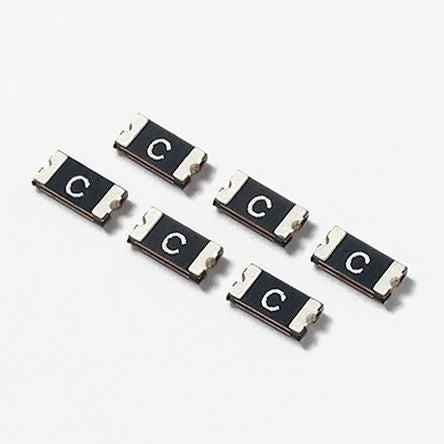

Littelfuse 4A Resettable Surface Mount Fuse, 6V dc [1206L400SLWR]; 174-0839
by Littelfuse
0₫
Mã kho: 1740839
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 8A |
| Voltage Rating | 6 V dc |
| Time to Trip | 2s |
| Hold Current | 0.166666666666667 |
| Maximum Current | 50 A |
| Length | 3.4mm |
| Height | 1.4mm |
| Width | 1.8mm |
| Terminal Material | Tin Plated Copper |
| Minimum Resistance | 0.001Ω |
| Maximum Resistance | 10mΩ |
| Power Dissipation | 0.8W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Body Material | Polymer |
| Dimensions | 3.4 x 1.8 x 1.4mm |
| Series | 1206L |
| Operating Temperature Range | -40 → +85 °C |
| Fuse Speed | F |
