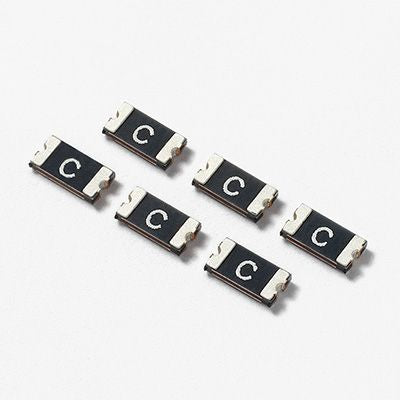

Littelfuse 1.5A Resettable Surface Mount Fuse, 12V dc [1206L150/12SLYR]; 174-0693
by Littelfuse
0₫
Mã kho: 1740693
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 3A |
| Voltage Rating | 12 V dc |
| Time to Trip | 0.3s |
| Hold Current | 1.5 A |
| Maximum Current | 50 A |
| Length | 3.4mm |
| Height | 0.85mm |
| Width | 1.8mm |
| Terminal Material | Tin Plated Copper |
| Minimum Resistance | 0.01Ω |
| Maximum Resistance | 80mΩ |
| Power Dissipation | 0.8W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Series | 1206L |
| Dimensions | 3.4 x 1.8 x 0.85mm |
| Fuse Speed | F |
| Body Material | Polymer |
| Operating Temperature Range | -40 → +85 °C |
