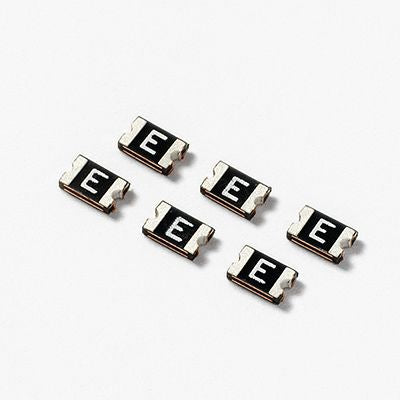

Littelfuse 0.75A Resettable Surface Mount Fuse, 6V dc [0805L075SLYR]; 174-0362
by Littelfuse
0₫
Mã kho: 1740362
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 1.5A |
| Voltage Rating | 6 V dc |
| Time to Trip | 0.2s |
| Hold Current | 0.75 A |
| Maximum Current | 50 A |
| Length | 2.2mm |
| Height | 0.75mm |
| Width | 1.5mm |
| Terminal Material | Tin Plated Copper |
| Minimum Resistance | 0.04Ω |
| Maximum Resistance | 160mΩ |
| Power Dissipation | 0.6W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Body Material | Polymer |
| Operating Temperature Range | -40 → +85 °C |
| Series | 0805L |
| Fuse Speed | F |
| Dimensions | 2.2 x 1.5 x 0.75mm |
