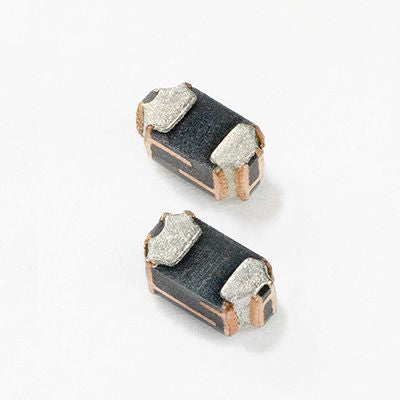

Littelfuse 0.35A Resettable Surface Mount Fuse, 6V dc [0402L035SLKR]; 174-0337
by Littelfuse
0₫
Mã kho: 1740337
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 700mA |
| Voltage Rating | 6 V dc |
| Time to Trip | 0.1s |
| Hold Current | 0.35 A |
| Maximum Current | 50 A |
| Length | 1.15mm |
| Height | 0.6mm |
| Width | 0.65mm |
| Terminal Material | Tin Plated Copper |
| Minimum Resistance | 0.05Ω |
| Maximum Resistance | 700mΩ |
| Power Dissipation | 0.5W |
| Minimum Operating Temperature | -40°C |
| Package Size | 402 |
| Maximum Operating Temperature | +85°C |
| Dimensions | 1.15 x 0.65 x 0.6mm |
| Body Material | Polymer |
| Fuse Speed | F |
| Operating Temperature Range | -40 → +85 °C |
| Series | 0402L |
