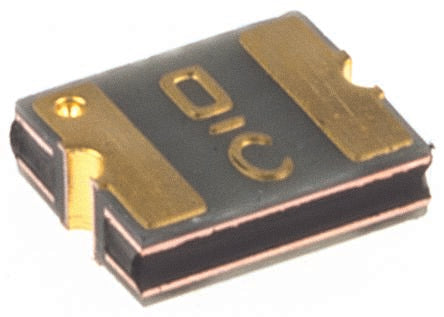

Bourns 0.5A Surface Mount Resettable Fuse, 13.2V [MF-USMF050-2]; 647-8409
by Bourns
0₫
Mã kho: 6478409
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 1A |
| Voltage Rating | 13.2 V |
| Time to Trip | 0.1s |
| Hold Current | 0.5 A |
| Maximum Current | 40 A |
| Length | 3.43mm |
| Height | 0.85mm |
| Width | 2.8mm |
| Terminal Material | Electroless Nickel Immersion Gold |
| Minimum Resistance | 0.18Ω |
| Maximum Resistance | 900mΩ |
| Power Dissipation | 0.6W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Package Size | 1210 |
| Operating Temperature Range | -40 → +85 °C |
| Dimensions | 3.43 x 2.8 x 0.85mm |
