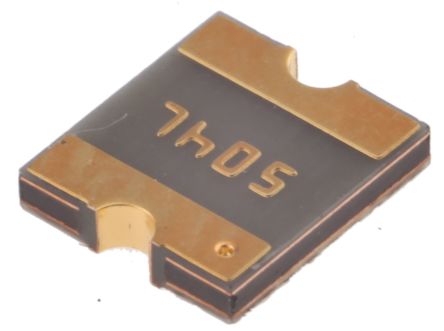

Bourns 0.55A Surface Mount Resettable Fuse, 60V [MF-SMDF050-2]; 647-7995
by Bourns
0₫
Mã kho: 6477995
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 1.2A |
| Voltage Rating | 60 V |
| Time to Trip | 3s |
| Hold Current | 0.55 A |
| Maximum Current | 0.416666666666667 |
| Length | 5.44mm |
| Height | 1.09mm |
| Width | 4.93mm |
| Terminal Material | Electroless Nickel Immersion Gold |
| Minimum Resistance | 0.2Ω |
| Maximum Resistance | 1Ω |
| Power Dissipation | 0.9W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Package Size | 1812 |
| Operating Temperature Range | -40 → +85 °C |
| Dimensions | 5.44 x 4.93 x 1.09mm |
