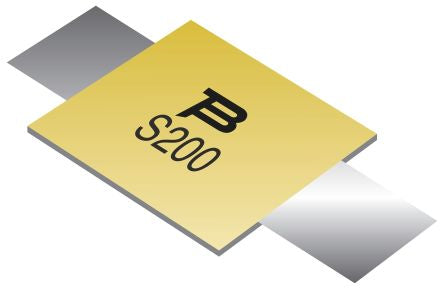

Bourns 1.5A Surface Mount Resettable Fuse, 15V [MF-S150]; 817-1703
by Bourns
0₫
Mã kho: 8171703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 3A |
| Voltage Rating | 15 V |
| Time to Trip | 5s |
| Hold Current | 1.5 A |
| Maximum Current | 100 A |
| Length | 12.4mm |
| Height | 1.1mm |
| Width | 11mm |
| Terminal Material | Quarter Hard Nickel |
| Minimum Resistance | 0.05Ω |
| Maximum Resistance | 90mΩ |
| Power Dissipation | 1.3W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85 °C |
| Dimensions | 12.4 x 11 x 1.1mm |
