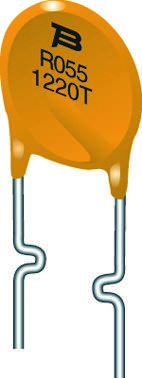

Bourns 3.75A Hold current, Radial Leaded PCB Mount Resettable Fuse, 72V [MF-RX375/72-0]; 647-8730
by Bourns
0₫
Mã kho: 6478730
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 7.5A |
| Time to Trip | 24s |
| Hold Current | 3.75 A |
| Voltage Rating | 72 V |
| Maximum Current | 40 A |
| Minimum Resistance | 0.03Ω |
| Maximum Resistance | 80mΩ |
| Power Dissipation | 3.2W |
| Body Height | 29.51mm |
| Body Length | 23.51mm |
| Body Width | 3.1mm |
| Wire Pitch | 10.2mm |
| Wire Length | 7.6mm |
| Wire Diameter | 0.81mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
