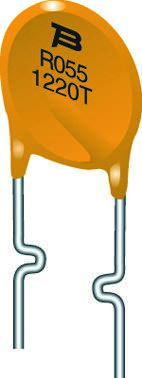

Bourns 1.6A Hold current, Radial Leaded PCB Mount Resettable Fuse, 72V [MF-RX160/72-0]; 647-8689
by Bourns
0₫
Mã kho: 6478689
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 3.2A |
| Time to Trip | 11.4s |
| Hold Current | 1.6 A |
| Voltage Rating | 72 V |
| Maximum Current | 40 A |
| Minimum Resistance | 0.09Ω |
| Maximum Resistance | 220mΩ |
| Power Dissipation | 1.9W |
| Body Height | 19.94mm |
| Body Length | 13.94mm |
| Body Width | 3.1mm |
| Wire Pitch | 5.1mm |
| Wire Length | 7.6mm |
| Wire Diameter | 0.81mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
