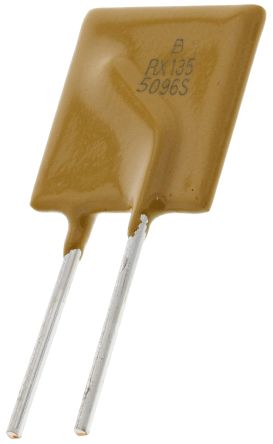

Bourns 1.35A Hold current, Radial Leaded PCB Mount Resettable Fuse, 72V [MF-RX135/72-0]; 647-8695
by Bourns
0₫
Mã kho: 6478695
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 2.7A |
| Time to Trip | 9.6s |
| Hold Current | 1.35 A |
| Voltage Rating | 72 V |
| Maximum Current | 40 A |
| Minimum Resistance | 0.12Ω |
| Maximum Resistance | 300mΩ |
| Power Dissipation | 1.7W |
| Body Height | 18.26mm |
| Body Length | 12.26mm |
| Body Width | 3.1mm |
| Wire Pitch | 5.1mm |
| Wire Length | 7.6mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Wire Diameter | 0.81mm |
