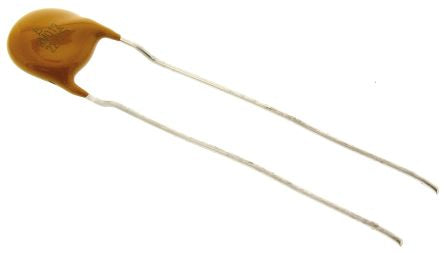

Bourns 0.12A Hold current, Radial Resettable Wire Ended Fuses, 240V ac [MF-RM012/240-2]; 775-6047
by Bourns
0₫
Mã kho: 7756047
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 300mA |
| Time to Trip | 15s |
| Hold Current | 0.12 A |
| Voltage Rating | 240 V ac |
| Maximum Current | 1.2 A |
| Minimum Resistance | 3Ω |
| Maximum Resistance | 12Ω |
| Power Dissipation | 1W |
| Body Height | 12.9mm |
| Body Length | 8.3 (Dia.)mm |
| Body Width | 3.8mm |
| Wire Pitch | 5.1mm |
| Wire Length | 7.6mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Wire Diameter | 0.51mm |
