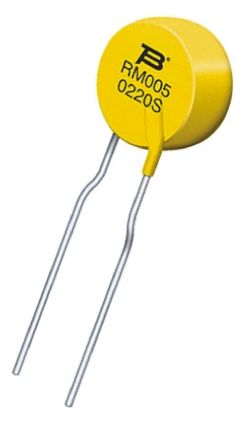

Bourns 0.05A Hold current, Radial Resettable Wire Ended Fuses, 240V ac [MF-RM005/240-2]; 775-6034
by Bourns
0₫
Mã kho: 7756034
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 120mA |
| Time to Trip | 10s |
| Hold Current | 0.05 A |
| Voltage Rating | 240 V ac |
| Maximum Current | 0.0416666666666667 |
| Minimum Resistance | 18.50Ω |
| Maximum Resistance | 65Ω |
| Power Dissipation | 0.9W |
| Body Height | 12.9mm |
| Body Length | 8.3 (Dia.)mm |
| Body Width | 3.8mm |
| Wire Pitch | 5.1mm |
| Wire Length | 7.6mm |
| Minimum Operating Temperature | -20°C |
| Wire Diameter | 0.51mm |
| Maximum Operating Temperature | +85°C |
