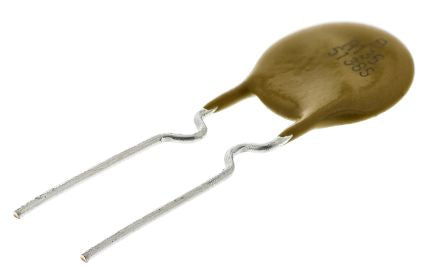

Bourns 1.35A Hold current, Radial Leaded PCB Mount Resettable Fuse, 30V [MF-R135]; 647-8544
by Bourns
0₫
Mã kho: 6478544
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 2.7A |
| Time to Trip | 7.3s |
| Hold Current | 1.35 A |
| Voltage Rating | 30 V |
| Maximum Current | 40 A |
| Minimum Resistance | 0.065Ω |
| Maximum Resistance | 170mΩ |
| Power Dissipation | 0.8W |
| Body Height | 18.9mm |
| Body Length | 8.9mm |
| Body Width | 3mm |
| Wire Pitch | 5.1mm |
| Wire Length | 7.6mm |
| Maximum Operating Temperature | +85°C |
| Wire Diameter | 0.51mm |
| Minimum Operating Temperature | -40°C |
