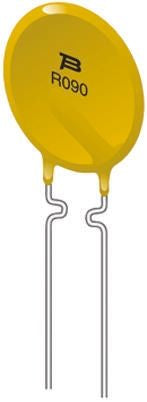

Bourns 0.55A Hold current, Radial Leaded PCB Mount Resettable Fuse, 90V [MF-R055/90-0]; 167-4748
by Bourns
0₫
Mã kho: 1674748
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 1.1A |
| Time to Trip | 60s |
| Hold Current | 0.55 A |
| Voltage Rating | 90 V |
| Maximum Current | 0.416666666666667 |
| Minimum Resistance | 0.45Ω |
| Maximum Resistance | 2Ω |
| Power Dissipation | 2W |
| Body Height | 16.7mm |
| Body Length | 10.9mm |
| Body Width | 3.6mm |
| Wire Pitch | 5.1mm |
| Wire Length | 6.3mm |
| Wire Diameter | 0.81mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
