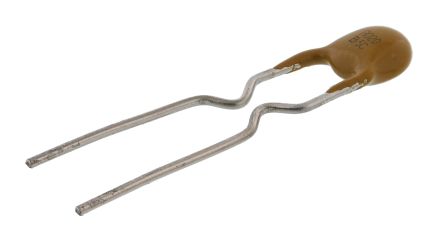

Bourns 0.2A Hold current, Radial Leaded PCB Mount Resettable Fuse, 60V [MF-R020]; 647-8459
by Bourns
0₫
Mã kho: 6478459
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Lead Orientation | Radial |
Trip Current | 400mA |
Time to Trip | 2.2s |
Hold Current | 0.2 A |
Voltage Rating | 60 V |
Maximum Current | 40 A |
Minimum Resistance | 1.5Ω |
Maximum Resistance | 4.4Ω |
Power Dissipation | 0.4W |
Body Height | 12.7mm |
Body Length | 7.4mm |
Body Width | 3.1mm |
Wire Pitch | 5.1mm |
Wire Length | 7.6mm |
Minimum Operating Temperature | -40°C |
Wire Diameter | 0.51mm |
Maximum Operating Temperature | +85°C |
