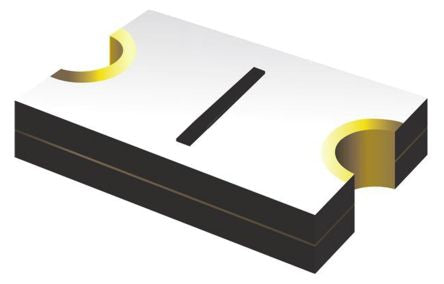

Bourns 0.1A Surface Mount Resettable Fuse, 15V [MF-FSMF010X-2]; 817-1633
by Bourns
0₫
Mã kho: 8171633
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 300mA |
| Voltage Rating | 15 V |
| Time to Trip | 1s |
| Hold Current | 0.1 A |
| Maximum Current | 40 A |
| Length | 1.85mm |
| Height | 0.65mm |
| Width | 1.05mm |
| Terminal Material | Gold Plated Nickel |
| Minimum Resistance | 0.9Ω |
| Maximum Resistance | 6Ω |
| Power Dissipation | 0.5W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Dimensions | 1.85 x 1.05 x 0.65mm |
| Operating Temperature Range | -40 → +85 °C |
