Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Frequency Range Sinewave | 25MHz |
Digital Amplitude and Offset | Yes |
Internal Linear and Log Sweep | Yes |
FM Modulation | Yes |
Time Base Accuracy | ±20ppm |
Minimum Operating Temperature | 0°C |
Height | 107mm |
Width | 293mm |
Input Impedance | 10 kO |
Interface Type | LAN, USB |
Length | 266mm |

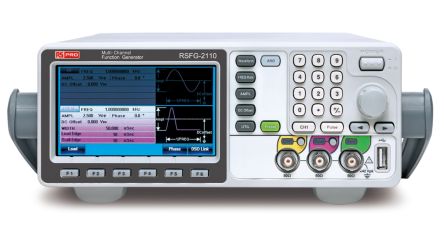

Model Number p | RSFG-2110 |
Weight | 2.5kg |
Attenuation | 20dB |
Maximum Operating Temperature | +40°C |
Dimensions | 266 x 293 x 107mm |
TTL Output Level | =4V Pk-Pk |
