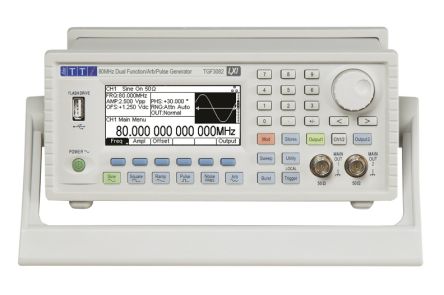

Aim-TTi TGF3082 Function Generator 80MHz GPIB, LAN, USB [59120-6240]; 162-5669
by Aim-TTi
0₫
Mã kho: 1625669
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Frequency Range Sinewave | 80MHz |
Minimum Frequency Range Sinewave | 1µHz |
Maximum Frequency Range Square Pulse and Arbitrary Waveform | 20 MHz, 25 MHz, 40 MHz |
Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 mHz, 1 μHz |
Maximum Frequency Range Triangle/Saw | 5MHz |
Minimum Frequency Range Triangle/Saw | 1µHz |
Digital Frequency | Yes |
Digital Amplitude and Offset | Yes |
Internal Linear and Log Sweep | Yes |
Variable Sweep | Yes |
Internal and External Amplitude Modulation | Yes |
FM Modulation | Yes |
Time Base Accuracy | ±1ppm |
Model Number p | TGF3082 |
Output Impedance | 50Ω |
Weight | 3.2kg |
Input Impedance | 10 kΩ |
Length | 269 mm, 295 mm |
Attenuation | 42dB |
Dimensions | 269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top) mm |
CMOS Output Level | 3V |
Output Amplitude | 20V Pk-Pk |
Maximum Operating Temperature | +40°C |
Height | 86.5 mm, 97 mm |
Width | 213.5 mm, 250 mm |
Interface Type | GPIB, LAN, USB |
Frequency Range Square Pulse and Arbitrary Waveform | 1 mHz → 20 MHz (Pulse), 1 μHz → 25 MHz (Square), 1 μHz → 40 MHz (Arbitrary) |
Minimum Operating Temperature | +5°C |
