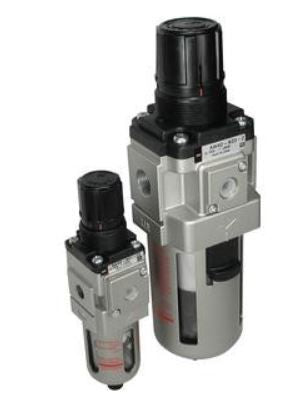

SMC AW FR Assembly 5μm G 1/4, 10 bar [AW20-F02H-B]; 890-3213
by SMC
0₫
Mã kho: 8903213
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | AW |
| Port Connection | G 1/4 |
| Filtration Size | 5µm |
| Pressure Gauge Port | G 1/8 |
| Pressure Gauge Port Thread Size | 1/8 in |
| Port Connection Thread Size | 1/4 in |
| Maximum Operating Pressure | 10 bar |
| Maximum Ambient Operating Temperature | +60°C |
| Minimum Process Operating Temperature | -5°C |
| Minimum Ambient Operating Temperature | -5°C |
| Process Operating Temperature Range | -5 → +60°C |
| Proof Pressure | 1.5MPa |
| Bowl Material | Polycarbonate |
| Ambient Operating Temperature Range | -5 → +60°C |
| Port Connection Thread Standard | G |
| Pressure Gauge Port Thread Standard | G |
| Maximum Process Operating Temperature | +60°C |
