![SMC AW20-02BG-2-A 7927775](http://nguyenxuong.com/cdn/shop/products/R7832438-01_7cf72dda-03ef-4ae6-9403-1375d0225b10_280x423.jpg?v=1594036201)

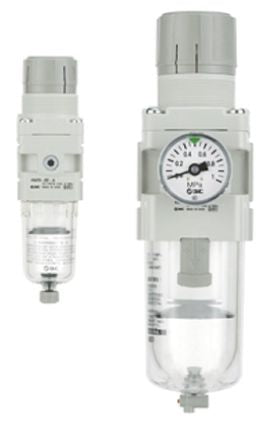

SMC AC FR Assembly 5μm Rc 1/4, 1 MPa, 1.5 MPa [AW20-02BG-2-A]; 792-7775
by SMC
0₫
Mã kho: 7927775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | AC |
Port Connection | Rc 1/4 |
Drain Type | Manual |
Filtration Size | 5µm |
Pressure Gauge Port | G 1/8 |
Pressure Gauge Port Thread Size | 1/8 in |
Port Connection Thread Size | 1/4 in |
Maximum Operating Pressure | 1 MPa, 1.5 MPa |
Maximum Ambient Operating Temperature | +60°C |
Minimum Process Operating Temperature | -5°C |
Maximum Process Operating Temperature | +60°C |
Port Connection Thread Standard | Rc |
Ambient Operating Temperature Range | -5 → +60°C |
Pressure Gauge Port Thread Standard | G, NPT, Rc |
Process Operating Temperature Range | -5 → +60°C |
Minimum Ambient Operating Temperature | -5°C |
