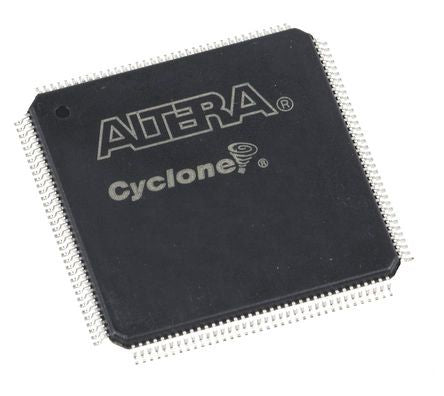

Altera FPGA EP4CE10E22I7N, Cyclone 10320 Cells, 10320 Gates, 423936, 645 Blocks, 1.15 → 1.25 V 144-Pin EQFP [EP4CE10E22I7N]; 921-3549
by Altera
0₫
Mã kho: 9213549
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | Cyclone |
Number of Logic Gates | 10320 |
Number of Logic Cells | 10320 |
Number of Logic Units | 645 |
Dedicated DSP | Yes |
Number of Multipliers | 360 (18 x 18) |
Mounting Type | Surface Mount |
Package Type | EQFP |
Pin Count | 144 |
Number of RAM Bits | 423936 |
Length | 22mm |
Maximum Operating Supply Voltage | 1.25 V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +100 °C |
Width | 22mm |
Minimum Operating Supply Voltage | 1.15 V |
