![Altera EP2C5T144I8N 6296190](http://nguyenxuong.com/cdn/shop/products/F6296190-01_a7ee0066-d9c6-40d0-88f8-95ec391dfdf1_444x292.jpg?v=1594042096)

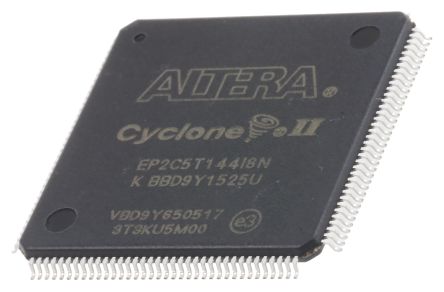

Altera FPGA EP2C5T144I8N, Cyclone II 4608 Cells, 4608 Blocks, 144-Pin TQFP [EP2C5T144I8N]; 629-6190
by Altera
0₫
Mã kho: 6296190
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | Cyclone II |
Number of Logic Cells | 4608 |
Number of Logic Units | 4608 |
Number of Multipliers | 13 (18 x 18) |
Mounting Type | Surface Mount |
Package Type | TQFP |
Pin Count | 144 |
Dimensions | 20 x 20 x 1.4mm |
Height | 1.4mm |
Length | 20mm |
Maximum Operating Temperature | +100 °C |
Minimum Operating Temperature | -40 °C |
Width | 20mm |
Maximum Operating Supply Voltage | 1.25 V |
Minimum Operating Supply Voltage | 1.15 V |
