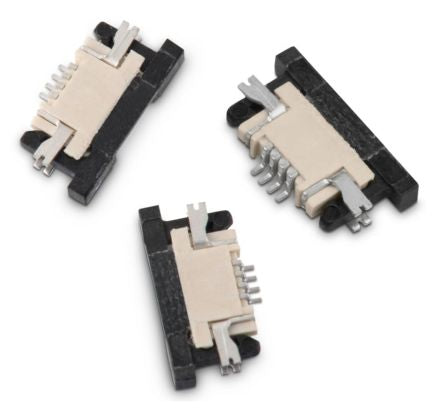

Wurth Elektronik WR-FPC 0.5mm Pitch 18 Way Horizontal SMT Female FPC Connector, Bottom Contact [687118183722]; 141-8710
0₫
Mã kho: 1418710
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 18 |
| Contact Material | Phosphor Bronze |
| Pitch | 0.5mm |
| Mounting Type | Surface Mount |
| Gender | Female |
| Termination Type | Bottom Contact |
| Body Orientation | Horizontal |
| Current Rating | 400mA |
| Voltage Rating | 50 V ac |
| Series | WR-FPC |
| Number of Rows | 1 |
| Contact Plating | Tin over Nickel |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Termination Method | SMT |
| Housing Material | Liquid Crystal Polymer |
